Templates

Section titled “Templates”

Editor templates are project-level reusable overlay compositions. You save the current editor’s text and image overlays (and optionally export settings) as a template, then apply it to any work in the same project.

Templates

Save as template

Section titled “Save as template”
  • In the Editor step, arrange text and image overlays and optionally set export settings.

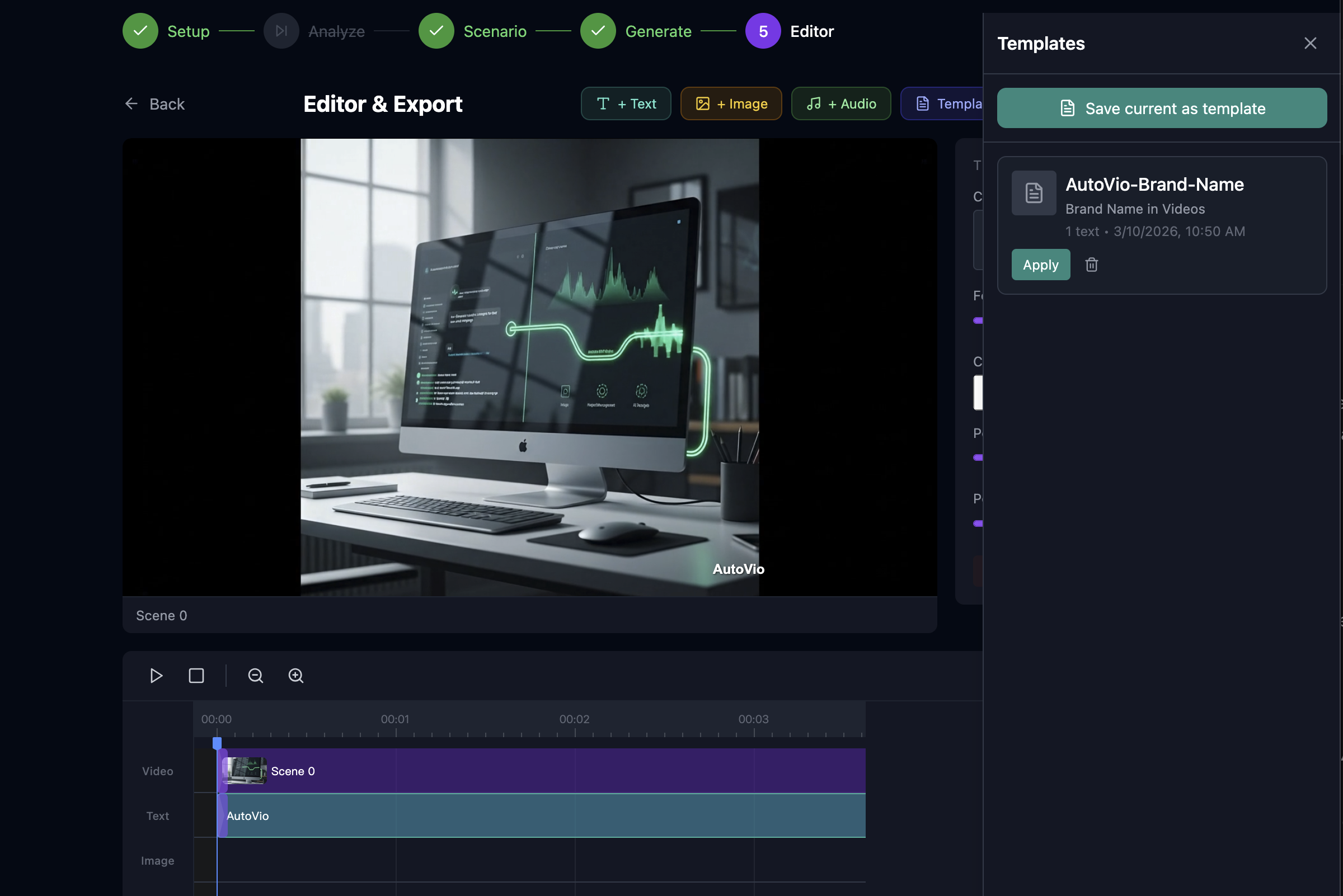

  • Open the Templates panel and choose Save current as template.
  • Enter name, optional description and tags. The template stores:
    • Text overlays — content, font size, color, position, timing (relative or absolute).
    • Image overlays — assetId, size, position, opacity, rotation, timing.
    • Export settings (optional) — width, height, fps.

Templates are stored in MongoDB; list/create/update/delete via the UI or Templates API.

Apply template

Section titled “Apply template”
  • In the Templates panel, pick a template and click Apply.
  • You provide video duration (so relative timing can be converted to seconds) and optional placeholder values (e.g. product_name → “EcoBottle”).
  • The backend returns merged text overlays, image overlays, and track actions; the frontend merges them into the current editor state and can update export settings.

Placeholders

Section titled “Placeholders”

Templates can contain placeholders in text, e.g. {{product_name}}. When applying, you pass placeholderValues: { product_name: "My Product" } and the backend replaces them. If an overlay references an image asset that no longer exists, the apply result may list missingAssetIds.

Timing

Section titled “Timing”
  • Relative — Stored as percentage of video duration (e.g. startPercent, endPercent). On apply, converted to seconds using the work’s video duration.
  • Absolute — Stored as startSeconds, endSeconds. Applied as-is (or scaled if the implementation supports it).
